Part 1: Analyzing the Original Crack

↑

Identifying the changes

↑

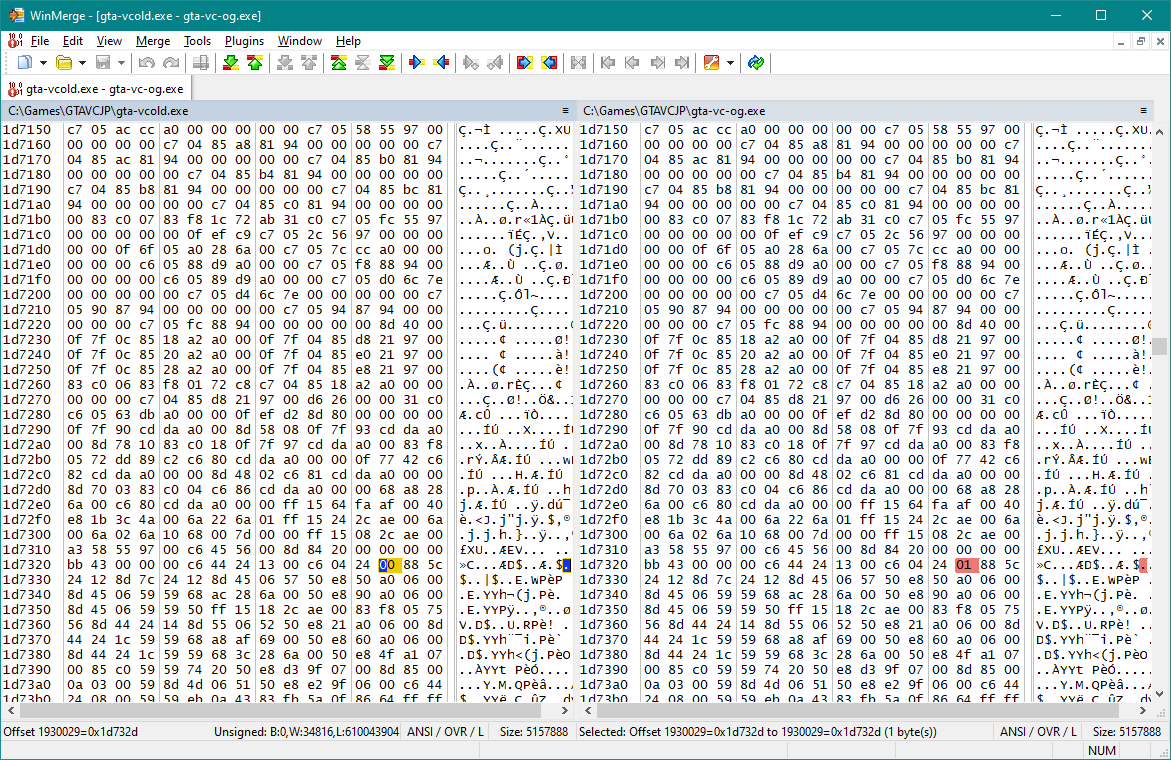

First of all, I wanted to see what the original crack was doing. I used WinMerge to compare the original executable file as shipped with the no-CD crack, took note of the offsets of the areas that changed, and opened them up in x32dbg to view the disassembly.

Now I can investigate these areas in the running program's memory using x32dbg to see if things make sense.

Mapping static offsets to memory addresses

↑

To ensure I could locate the static addresses in loaded memory, I inspected the PE header to get the data needed to calculate where these will load into memory. I confirmed that the image base is 0x400000, so that's the memory address from which the program will be loaded in on launch. Furthermore, the section header for the .text section—the section housing the executable code—reveals that its virtual address is 0x1000, meaning this section will be loaded in at 0x400000 + 0x1000 = 0x401000. Further along, the PointerToRawData variable in the same header indicates the offset at which the executable code starts within the compiled binary, which is 0xE00. This means that I will have to subtract that offset from anything I find in the static file's .text section when mapping it to a memory address. So to sum it all up, add (0x400000 + 0x1000 - 0xE00) = 0x400200 to any static offsets found belonging to the .text section to map them to their location in memory once launched.

Analyzing the first change: bypassing the in-game disc check

↑

Starting with the no-CD crack, I located where I thought the first byte changed was: at 0x5D752D (0x1D732D + 0x400200). I found the following instruction:

C60424 01 | mov byte ptr ss:[esp],1

The exact byte changed is the last one: the value being written to *ESP, i.e. the most recent object pushed to the stack. Hereafter I will be referring to it as the Byte of Interest, or BOI. Now for what that instruction looks like in the original no-CD:

C60424 00 | mov byte ptr ss:[esp],0

Indeed, this is the spot.

So what exactly does this change do? I set a breakpoint and got a hit during the game's initial loading screen, meaning that this is past the point of any third-party DRM which, for games from that era, usually runs before the game itself launches. That is to say, it seemed likely that this was Rockstar's own in-game disc check. I tried editing the instruction back to writing a 01 byte to see what would happen on the retail EXE, but entered an infinite loop.

As I observed the values in the registers as the loop iterated, I could see that the instruction setting the BOI is run at the start of each iteration. Also, all the letters of the alphabet were being loaded one at a time, one per iteration. A few instructions into the loop, I found a call to Windows's GetDriveTypeA function followed by a check for whether the return value is equal to 5 (which means optical drive, as confirmed in Microsoft's documentation). It became obvious that this must be where it checks every possible Windows drive letter to see which drives are disc drives, and also where it would be checking for the presence of the "Play" disc usually required in order to play. Once the loop counter is greater than 0x5A = 'Z', the loop ends and the code immediately checks if the BOI is 0 or not, i.e. whether the disc check succeeded or not.

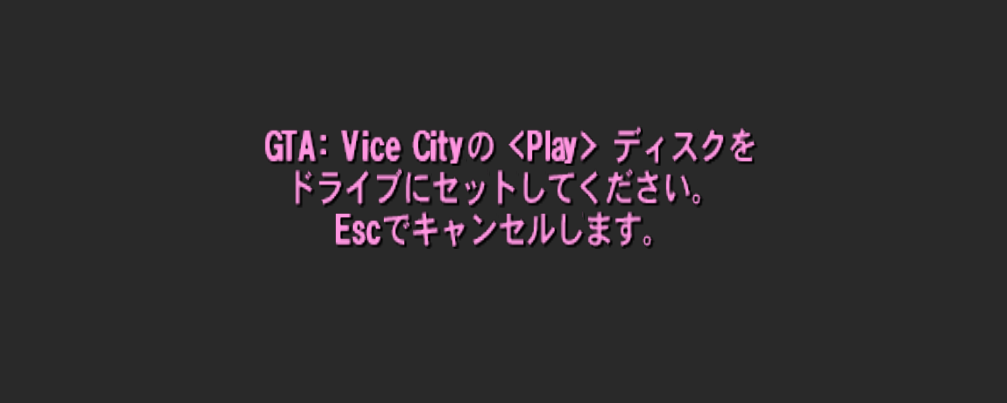

Anyway, during the aforementioned infinite loop, the game displays an error message (translated from Japanese): "Please insert the GTA: Vice City 'Play' disc into the drive. Press Esc to cancel." This makes sense now; the infinite loop is so that the error resolves itself as soon as the right disc is inserted and confirmed by the code.

Since the no-CD crack changes the value being set on the BOI, that probably means it is being checked somewhere as part of the disc check. To find exactly where, I set an access breakpoint on the BOI and found that there is a cmp instruction followed by a conditional jump at 0x5D75C1:

Note that ESP at this point is still the same as it was, so it is checking our BOI. So basically, this is a branch in the code based on whether the BOI is equal to 0 or not; if the BOI is anything but 0, we get the error message.

I took a quick look at what the conditions for setting this byte to 0 under normal circumstances were. Within the drive letter scanning loop, I found a spot where the BOI is set to 0, followed by a break out of the loop. Right before it lies the only conditional jump in the loop; if the return value of a certain function is 0, this jump is taken which skips over the instruction that sets the BOI to 0. That must be the crucial disc validation function, and a nonzero return value must mean a successful disc check.

---

To organize the facts so far: we have a loop that goes through each letter of the alphabet in order to check every Windows drive. At the start of this loop, the BOI is set to 1 (in the original EXE). If the drive is not an optical drive, continue the loop; otherwise, proceed further. Some disc validation function is called; if it returns 0, the disc check fails and the loop is continued. Otherwise, set the BOI to 0 and break out of the loop. Then the BOI is checked: if it is 0, the game loads to the main menu; otherwise, the error message described above is shown. So I can see now that the no-CD crack skips the error by simply setting the BOI to 0 on each iteration of the loop, so even when it finishes iterating through all the letters without a successful disc check, the BOI is already set to the desired value anyway, so the error message is never shown.

While it would be interesting to investigate the disc-checking procedure in more detail, that is something for another time. Let's move on to the other changes made in the original no-CD crack.

Analyzing the second/third changes: bypassing third-party DRM

↑

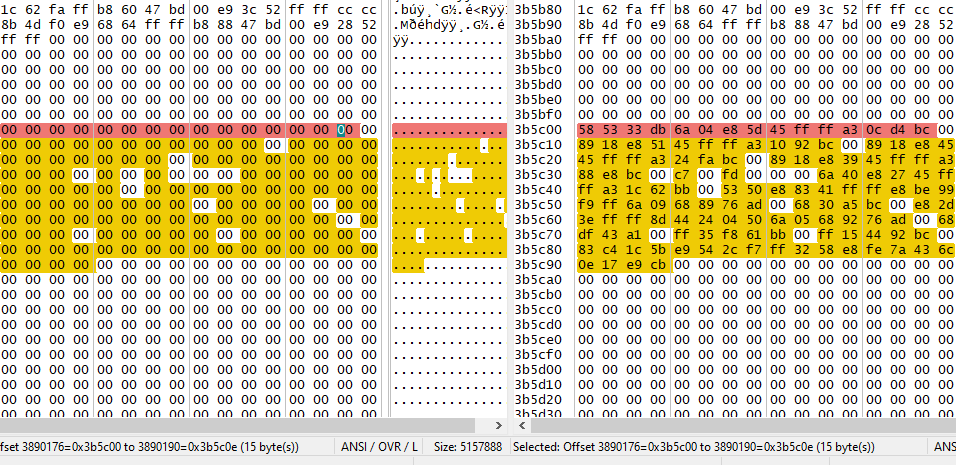

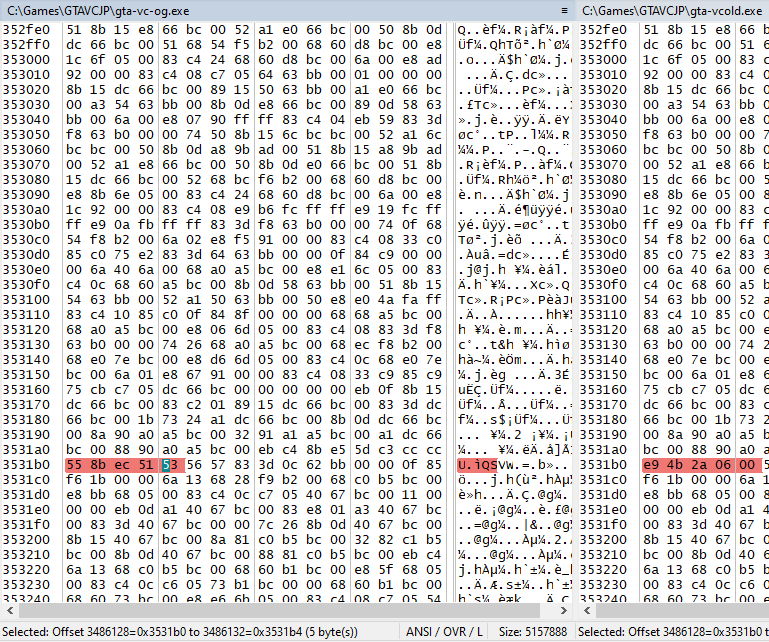

The interesting thing about these is that they aren't actually in the .text section. If I try applying my .text file-offset to memory-offset value here, I end up with addresses that fall squarely in .bss, which makes no sense as that is for uninitialized variables and therefore won't contain anything on disk at all. So I went back to the PE header to determine which section they are in. Eventually I got to a section named .bcvb, with a PointerToRawData of 2ED600 and a VirtualSize of CA000, encompassing bytes 2ED600 to 3B7600 of the file, which both of my remaining offsets of interest fall within. Finally, I calculate the "disk-to-memory mapping constant" for .bcvb: the VirtualAddress is 60F000, so the formula is 0x400000+60F000-2ED600 = 721A00.

So the offsets in memory must be:

• 3531B0 + 721A00 = A74BB0 (changed code)
• 3B5C00 + 721A00 = AD7600 (code cave)

I was throwing some questions at Google Gemini throughout this process, and it noted that a non-standard section name like .bcvb often indicates the presence of a custom add-on or some sort of obfuscation, such as for malware or cryptographic protectors. If that's the case, this is almost certainly where the DRM is.

The 5 bytes that were altered are obviously for a jump to the code cave, and indeed:

E9 4B2A0600 | jmp gta-vc.AD7600

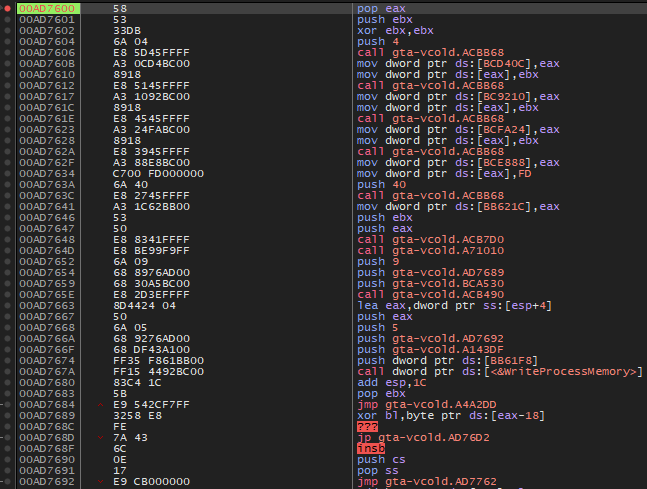

And this is what the code cave looks like:

Scanning over the code cave as well as other areas of the DRM code, it appears that the code cave is reusing certain functions and variables from the DRM code; my guess is that rather than skipping the check altogether, the code cave is trying to emulate a successful DRM check, whatever form that may take. For example, some DRM mechanisms verify the outcome of reading a certain intentionally-damaged part of the disc. I imagine this method was somewhat tedious to figure out, so my hypothesis is that there is some reason it was done this way.

While I would like to dig deeper into this, for now it is a little out of scope. But at this point I knew more or less what the original no-CD crack was doing.

---

Part 2: My Changes

↑

While I didn't delve deep enough to know exactly how to alter the original no-CD's code cave to fix my little issue, it was time to find out what could be done. Firstly, I had to locate whereabouts I needed to make changes. Simple enough; I just had to reproduce the "no CD-ROM drive found" error by unassigning my optical drives' drive letters, then see where the instruction pointer is in x32dbg when the error appears.

I set a few hardware breakpoints (interestingly, the software ones seemed to be getting disabled by the DRM) and compared the execution flow in the environment where the error appears vs. where it does not. I basically had to locate which conditional check was specifically branching to this error and get rid of it so that the code would always go the way it does when no errors would appear. I quickly found it and it was clear what had to change: a conditional jump (jne) at A49E5A had to become an unconditional jump (jmp), a 1-byte change. However, I came across several problems:

1. The values of that region of memory are completely different at program startup vs. when it is executed. This seems like some encrypted or obfuscated code.
2. I experimented with altering the byte within the static EXE code to one that gets decrypted to the new byte I needed (via trial and error), which does actually work, but crashes the program later; my guess is that there is a checksum validation which fails if any data had been out of place.
3. Sneaking in a 'mov' instruction to patch the byte after the code is deobfuscated doesn't result in anything happening; perhaps this is due to the section not being marked as writable.

With this information, I decided that a code cave would give me the space needed to write a hack that might work.

Architecting the Cave

↑

First, I chose where to place the code cave; to keep it simple, I placed it a few bytes after the original no-CD's code cave (at AD769B). Then, I set a hardware write breakpoint on the byte I wanted to alter to find which instruction deobfuscates that region. Right below the deobfuscating function call, I found a 'ret' instruction followed by some padding (at A105A9), which gave me enough room to replace the 'ret' with a jump to my code cave location.

Now to get the cave set up. Since plain old 'mov' didn't work, I would need to call Windows's WriteProcessMemory function. As I learned from developing the VC Mouse Fix, this function would let me bypass some memory protection limitations.

To confirm which values I would need to push and in what order when making the function call, I checked Microsoft's documentation. WriteProcessMemory takes the following parameters:

1. Process handle. I needed it to write to the current process, and after a quick search, I found that -1 is treated as "current process", so FFFFFFFF will be pushed.
2. Destination address pointer. This is A49E5A.
3. Source buffer pointer. I ended up picking an innocuous-looking spot within a field of zeroes in a writable section called .ljtsrx, at address BCFA70, the pointer to which will be pushed. My new byte is also written to the buffer address, of course.
4. Number of bytes to write. It is 1 in this case, so 1 will be pushed.
5. Number of bytes written (pointer, pseudo-return value). Since I don't care for getting the number of bytes written, 0 can be pushed for that; it is ignored if null.

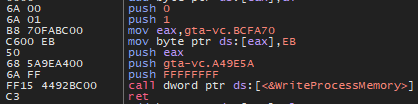

Now WriteProcessMemory can be called, followed by the original 'ret' that I overwrote. With the cave complete, the only thing left was to try it out.

Conclusion

↑

To be transparent, I don't recall how many bugs I had to fix in the code cave, but in the end, it worked! This updated version of the no-CD crack will prove useful for those without optical drives when they are getting set up to do speedruns of GTA Vice City (or Japanese people who want to play on PC without an optical drive). This took me a couple of days from start to finish, and it was my first time successfully performing any sort of hacking with assembly. I had tried my hand at figuring out x32dbg and Ghidra with some other similar project ideas prior to this, but perhaps due to my inexperience, I had not been able to get anywhere until now. I learned about some of the particulars of x86 assembly along the way and got exposure to how code might be secured/obfuscated, and circumventing such mechanisms. (I might even be able to make a cleaner version of the original no-CD crack, not that it's necessary.)
